The CSS Box Model

All HTML elements can be considered as boxes. In CSS, the term "box model" is used when talking about design and layout.

The CSS box model is essentially a box that wraps around every HTML element. It consists of: margins, borders, padding, and the actual content. The image below illustrates the box model:

Explanation of the different parts:

• Content - The content of the box, where text and images appear
• Padding - Clears an area between the content and the inside of the border. The padding is transparent.
• Border - A border that goes around the padding and content.
• Margin - Clears an area outside the border. The margin dictates the space between the box and its surrounding elements. The margin is transparent.

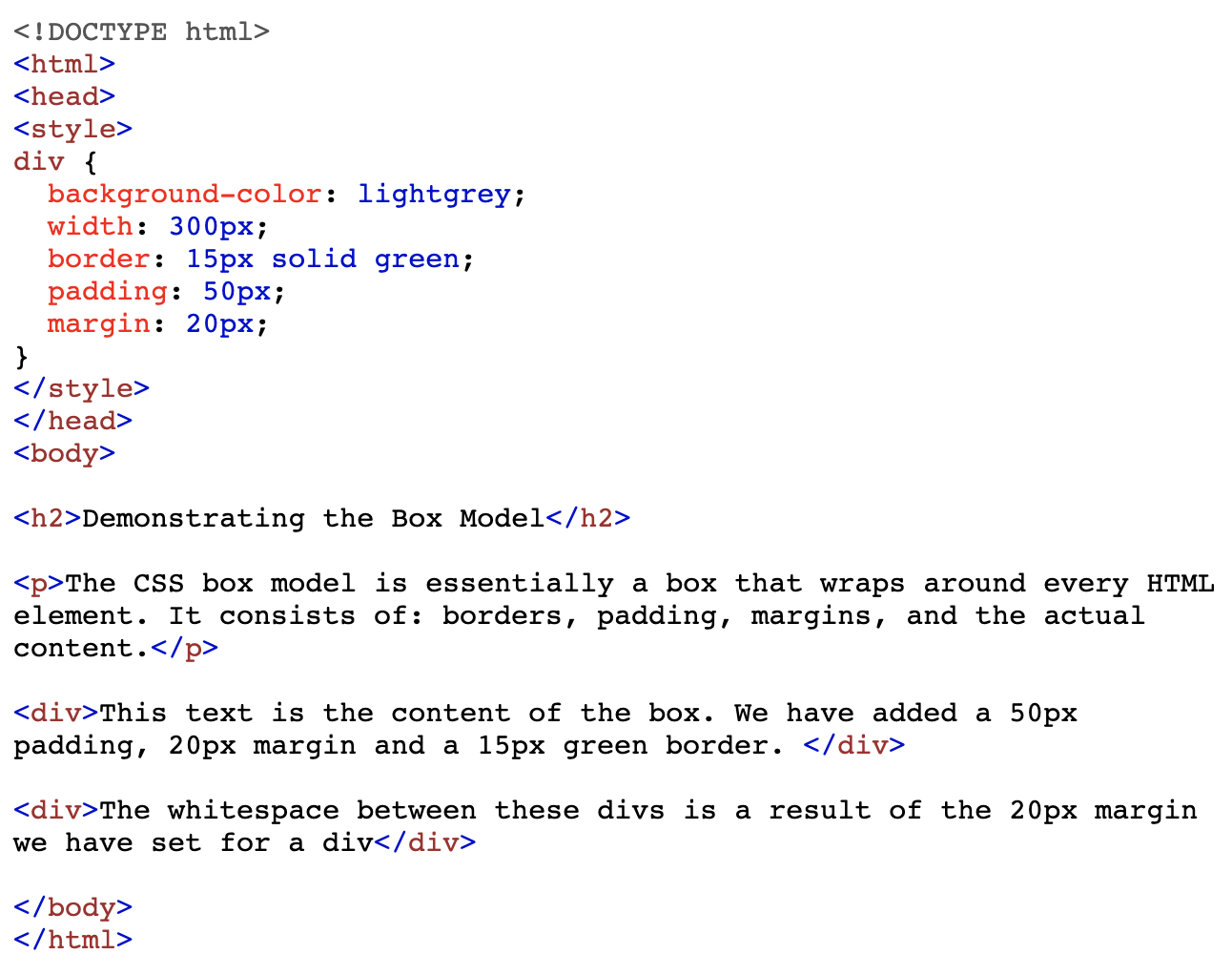

The box model allows us to add a border around elements, and to define space between elements. Here is some HTML and CSS of a an element that we have given a border to, and then set the padding and margin properties.

Here is what it would look like on your web page

Borders

Borders can be useful if you want viewers of your webpage to see the different elements on your webpage. This creates a much more distinct look and gets rid of any ambiguity. There are bunch of different ways you can style borders.

The border-style property specifies what kind of border to display.

• dotted - Defines a dotted border
• dashed - Defines a dashed border
• solid - Defines a solid border
• double - Defines a double border
• groove - Defines a 3D grooved border. The effect depends on the border-color value
• ridge - Defines a 3D ridged border. The effect depends on the border-color value
• inset - Defines a 3D inset border. The effect depends on the border-color value
• outset - Defines a 3D outset border. The effect depends on the border-color value
• none - Defines no border
• hidden - Defines a hidden border

The border-style property can have from one to four values (for the top border, right border, bottom border, and the left.

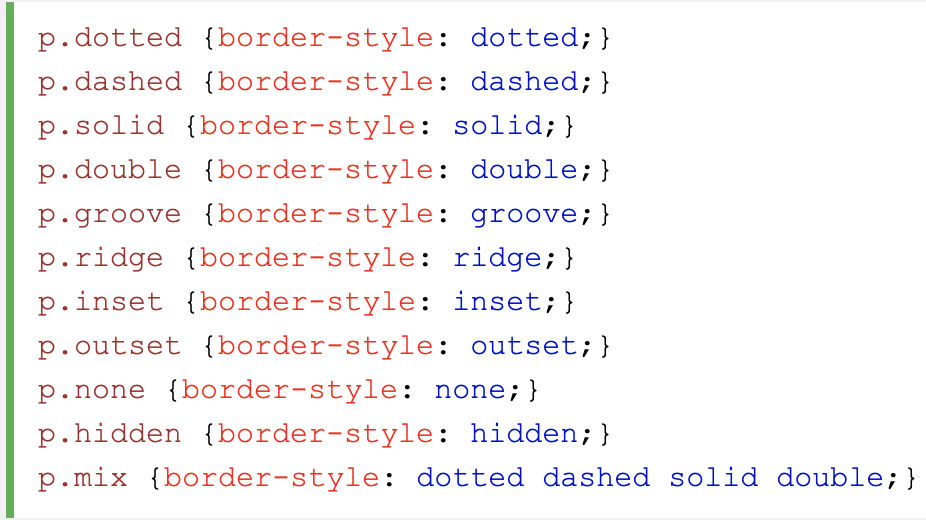

Here is what the code looks like for the different border-style properties

Here is what they look like on your webpage

Margin

When styling your website it can look a bit strange having all the elements squished up against one another. You may want to make use of ‘margin’ to space out your elements on the page. CSS has properties for specifying the margin for each side of an element:

• marign-top
• margin-right
• margin-bottom
• margin-left

All the margin properties can have the following values:

• auto - the browser calculates the margin
• length - specifies a margin in px, pt, cm, etc.
• % - specifies a margin in % of the width of the containing element
• inherit - specifies that the margin should be inherited from the parent element

Padding

Padding can be set on any CSS element to help create space between the content and the border. It’s another way to space out elements on your page and can be particularly useful when you have hidden borders but want space around one elements content, and another element.

CSS has properties for specifying the padding for each side of an element:

• padding-top
• padding-right
• padding-bottom
• padding-left

All the padding properties can have the following values:

• length - specifies a padding in px, pt, cm, etc.
• % - specifies a padding in % of the width of the containing element
• inherit - specifies that the padding should be inherited from the parent element

To shorten the code, it is possible to specify all the padding properties in one property. The padding property is a shorthand property for the following individual padding properties:

• padding-top
• padding-right
• padding-bottom
• padding-left

So, here is how it works: If the padding property has four values:

• padding: 25px 50px 75px 100px;
• top padding is 25px
• right padding is 50px
• bottom padding is 75px
• left padding is 100px

Headover to codeply.com and try playing around with these properties yourself!

All information and images sourced from W3 schools.com
